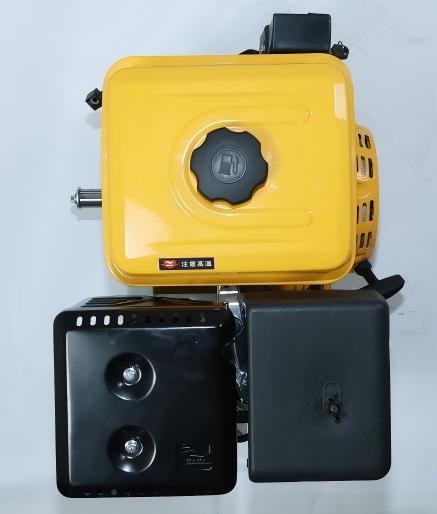

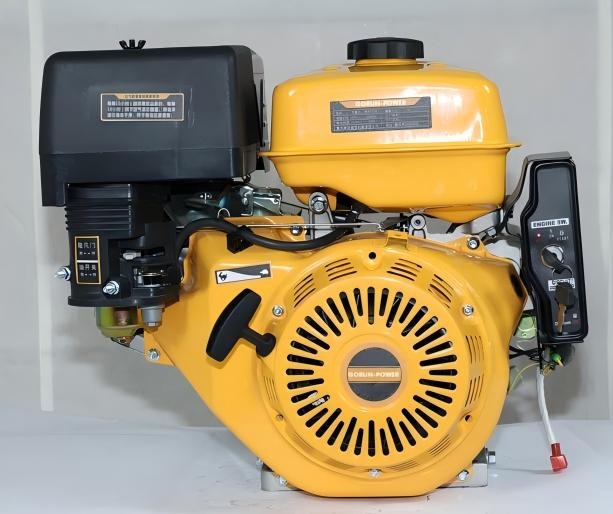

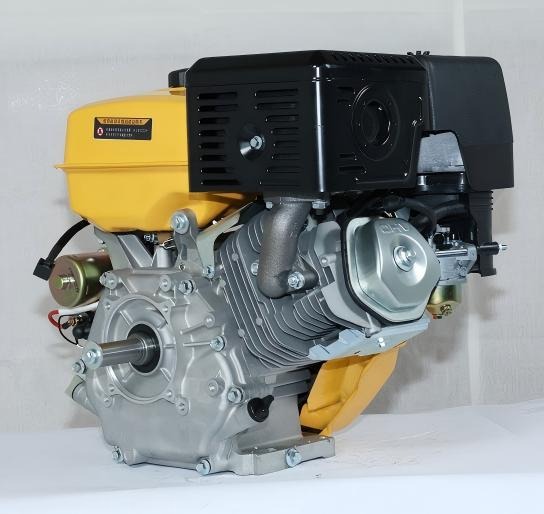

192FD High Quality 11.1HP Single Cylinder Gasoline Engine
Basic Info.
|
Parameter
|
Value
|
|
Engine Type
|
Single Cylinder
|
|
Bore x Stroke (mm)
|
92*69
|
|
Displacement (ml)
|
459
|
|
Compression Ratio
|
8:0:1
|
|
Rated Power (kW(hp)/rpm)
|
8.5 (11.1)/3600
|
|
Max. Power (kW/rpm)
|
8.7(11.8)/3600
|
|
Max. Torque (N.m/rpm)
|
24.5/2500
|
|
Oil Capacity (L)
|
1.1
|
|
Fuel Tank Capacity (L)
|
6
|
|
Fuel Consumption Ratio (g/kW.h)
|
＜=370
|
|
Net/Gross Weight (kg)
|
32.5
|
|
Dimension (mm)
|
480*465*525
|
|
Starting Mode
|
Recoil/Electric
|
Product Description
Key Features:
(1) Engine Type: 192FD single cylinder gasoline engine, known for its robust construction and efficient power delivery.
(2) Power Output: With a rated power of 8.5 kW (11.1 hp) at 3600 rpm and a peak power of 8.7 kW (11.8 hp) at the same speed, this engine is built for powerful performance in demanding applications.
(3) Torque: The 11.1HP petrol engine generates a maximum torque of 24.5 N·m at 2500 rpm, providing excellent pulling power for heavy-duty tasks.
(4) Displacement: With a displacement of 459 ml, and a bore x stroke of 92mm x 69mm, the engine is designed to offer a perfect balance of power and efficiency.
Fuel Efficiency & Operational Capacity:
(1) Fuel Consumption: The 11.1HP gasoline engine boasts a fuel consumption rate of ≤370 g/kW·h, ensuring you get more out of every drop of fuel, which is ideal for long hours of operation at a lower cost.
(2) Fuel Tank Capacity: Equipped with a 6-liter fuel tank, this engine allows for extended operational periods without the need for frequent refueling.
(3) Oil Capacity: The 1.1-liter oil capacity provides ample lubrication, ensuring smooth engine operation over long durations and reducing the frequency of oil changes.
Compact and Durable Design:
(1) Dimensions: The 192FD single cylinder petrol engine has compact dimensions of 480mm x 465mm x 525mm, making it a space-efficient choice for a variety of applications.
(2) Weight: At just 32.5 kg, this engine is lightweight yet powerful, making it easy to handle, install, and transport without sacrificing performance.
Applications:
The 11.1HP petrol engine is perfect for a wide range of heavy-duty tasks including agricultural equipment, power generators, industrial machinery, and outdoor power tools. Its high torque, reliability, and fuel efficiency make it an excellent choice for users who demand consistent, long-lasting engine performance.
Packaging
Packed in a durable, environmentally friendly outer box
Secured with custom-fit foam inserts to prevent damage during shipping
Accompanied by a detailed user manual for installation, operation, and maintenance
Provided with a quick-start guide to help you get up and running quickly
Includes a feedback card for customer satisfaction and service improvement
